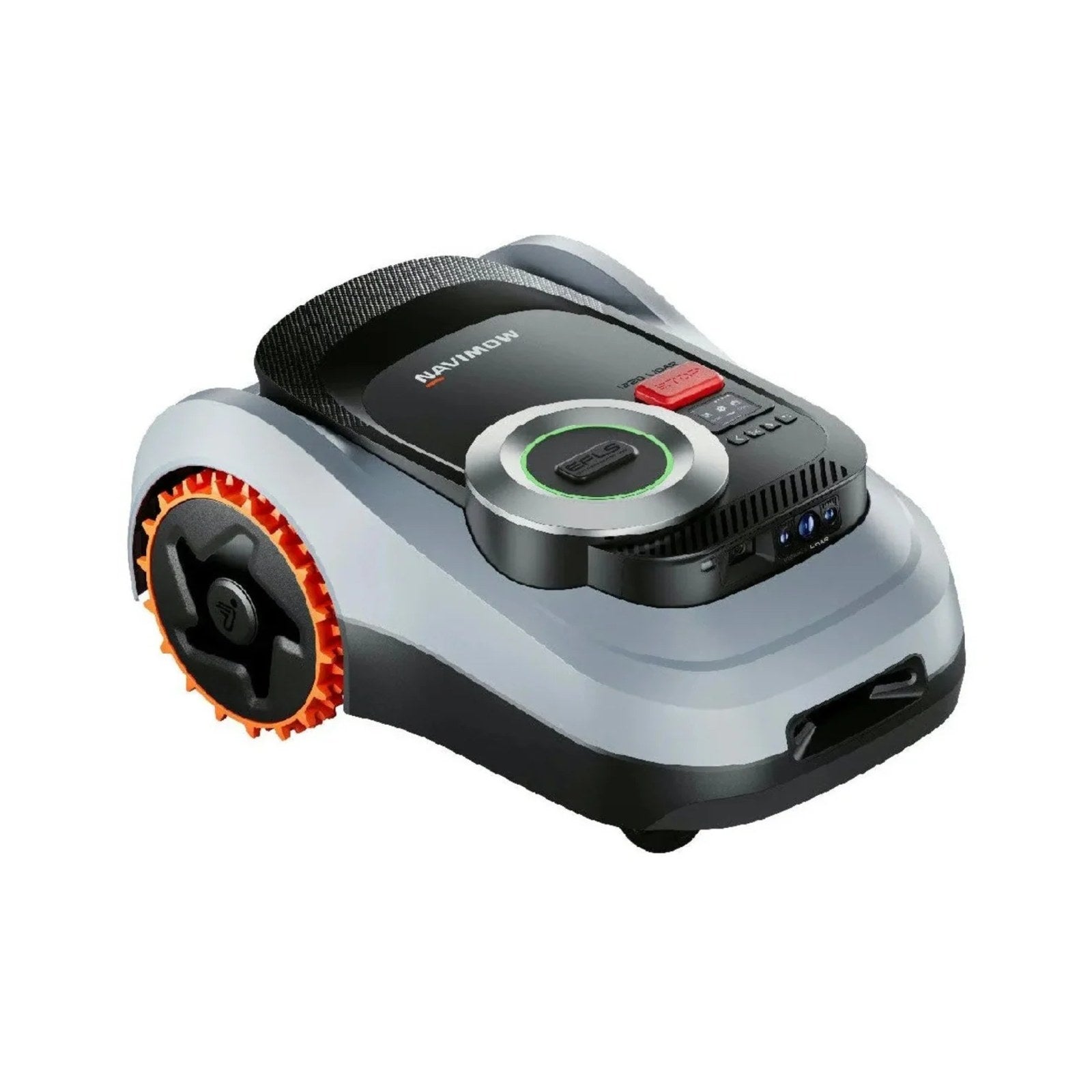

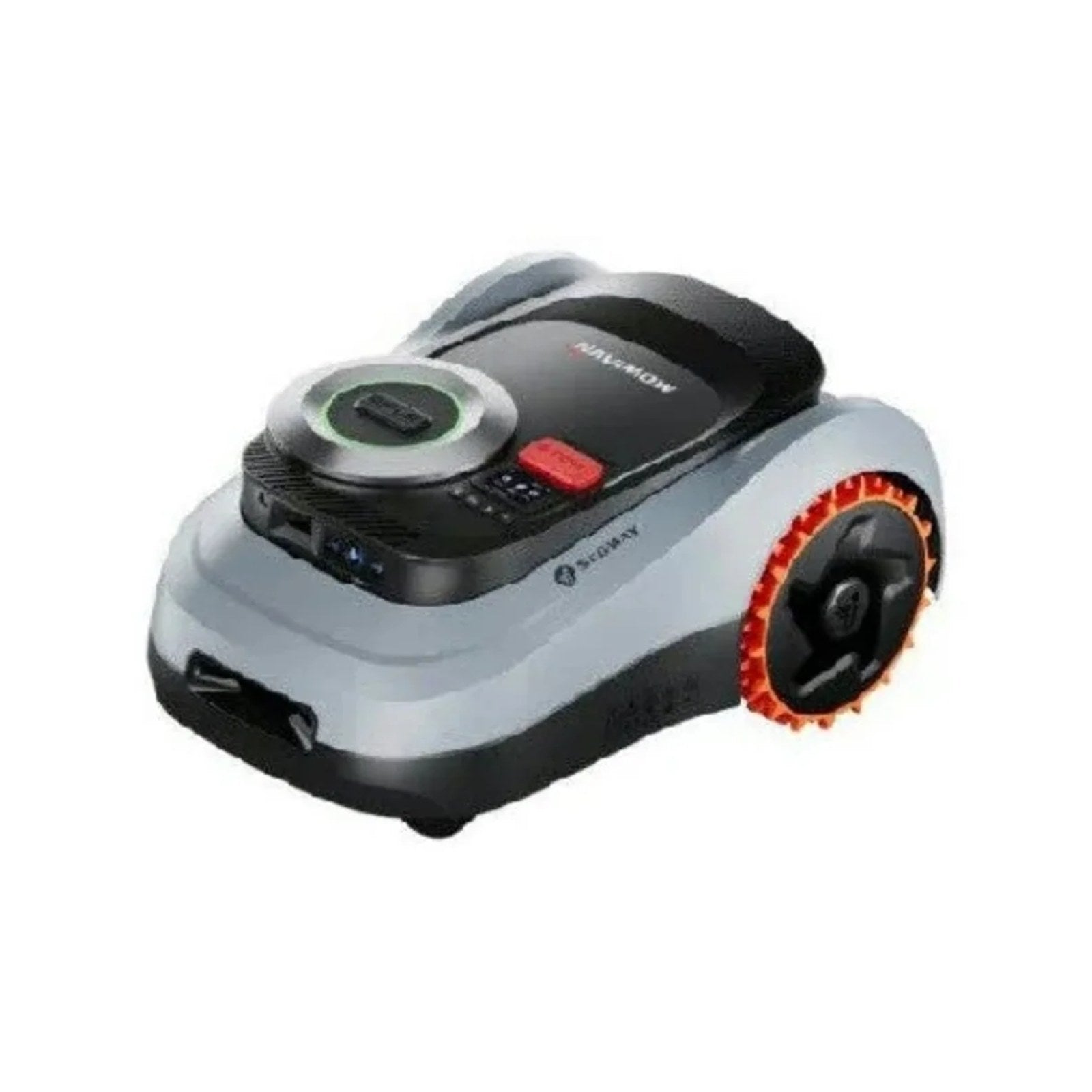

Navimow I220E Lidar Robotic Lawn Mower

Navimow i220E LiDAR – High Precision Mowing for Larger, Complex Lawns

The Navimow i220E LiDAR is designed for larger and more demanding gardens where maximum accuracy, smarter mapping and high daily capacity are essential. With advanced LiDAR navigation, wire free installation and intelligent obstacle avoidance, it delivers confident, fully autonomous lawn care.

1.    Advanced LiDAR Based Navigation

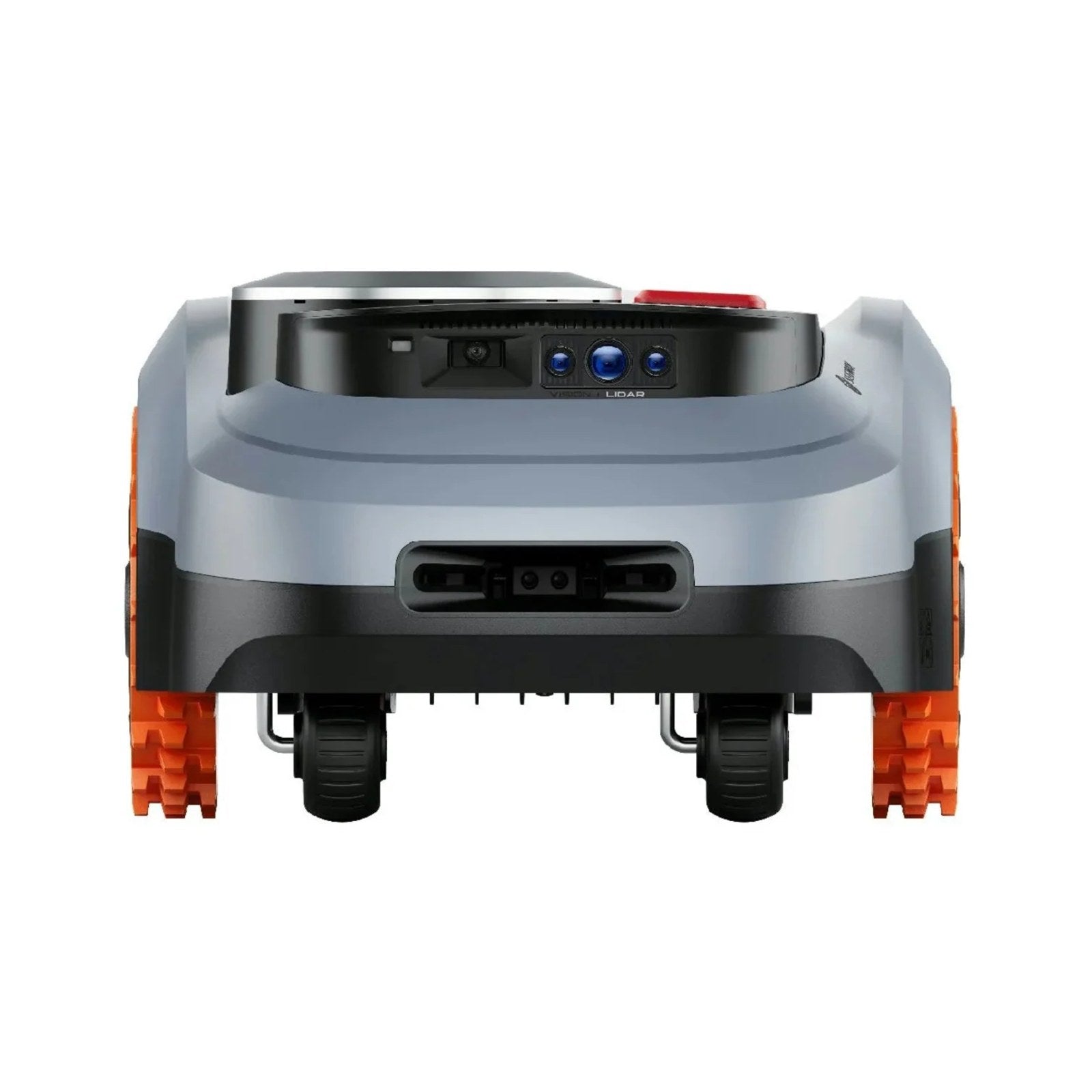

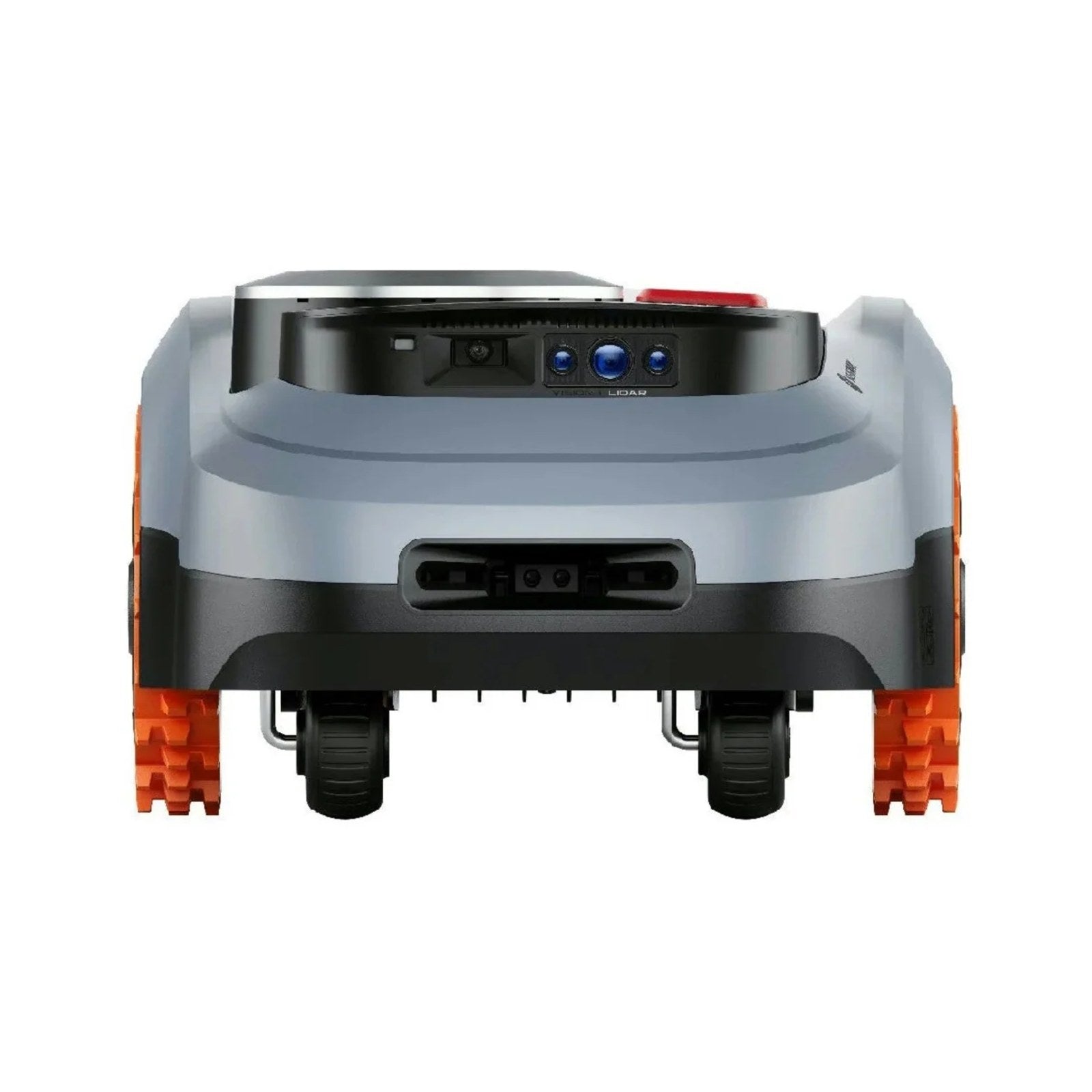

The EFLS™ LiDAR system combines LiDAR and vision technology for highly stable and precise navigation – even in areas with weak satellite signals.

2.    True Wire Free Setup with Auto Mapping
No boundary wires, no antennas. One click auto mapping allows fast setup and effortless daily operation.

3.    Smarter Obstacle Avoidance with VisionFence™
LiDAR enhanced VisionFence™ recognises over 200 objects, ensuring safe mowing around pets, people and garden obstacles.

4.    High Capacity for Larger Lawns
With a powerful battery and long mowing time, the i220E LiDAR can maintain large areas efficiently throughout the day.

5.    Quiet, Durable & Weather Adaptive
IP66 protection, weather adaptive scheduling and low noise operation ensure reliable performance in real outdoor conditions.

Technical Data – Navimow i220E LiDAR
•    Recommended Mowing Area: 2,000 m²
•    Locating System: EFLS™ LiDAR (LiDAR + Vision)
•    Object Detection System: VisionFence™ (140° RGB Camera + LiDAR)
•    Driving Engine: 2 Rear Wheel Drive
•    Noise Level: 59 dB(A)
•    Protection Level: IP66
•    Weather Adaptive: Weather Forecast
•    Maximum Slope Ability: 45% (24°)
•    Antenna Installation Request: No
•    Auto Mapping: Yes
•    Auto Recharge: Yes
•    Vertical Passing Ability: 3 cm
•    Multi zone Management: Yes (up to 20 zones)
•    3D / GeoSketch: Yes
•    Signal Enhancement Antenna: No

Battery & Performance
•    Battery Capacity: 10 Ah
•    Charging Time: 120 minutes
•    Full Charge Mowing Time: 210 minutes
•    Mowing Area per Charge: 560 m²
•    Continuous Mowing Area per Day (24 h): 2,400 m²
•    Cutting Speed: Not specified

Cutting System
•    Cutting Height: 2–7 cm
•    Cutting Height Adjustment: Automatic
•    Cutting Width: 22 cm
