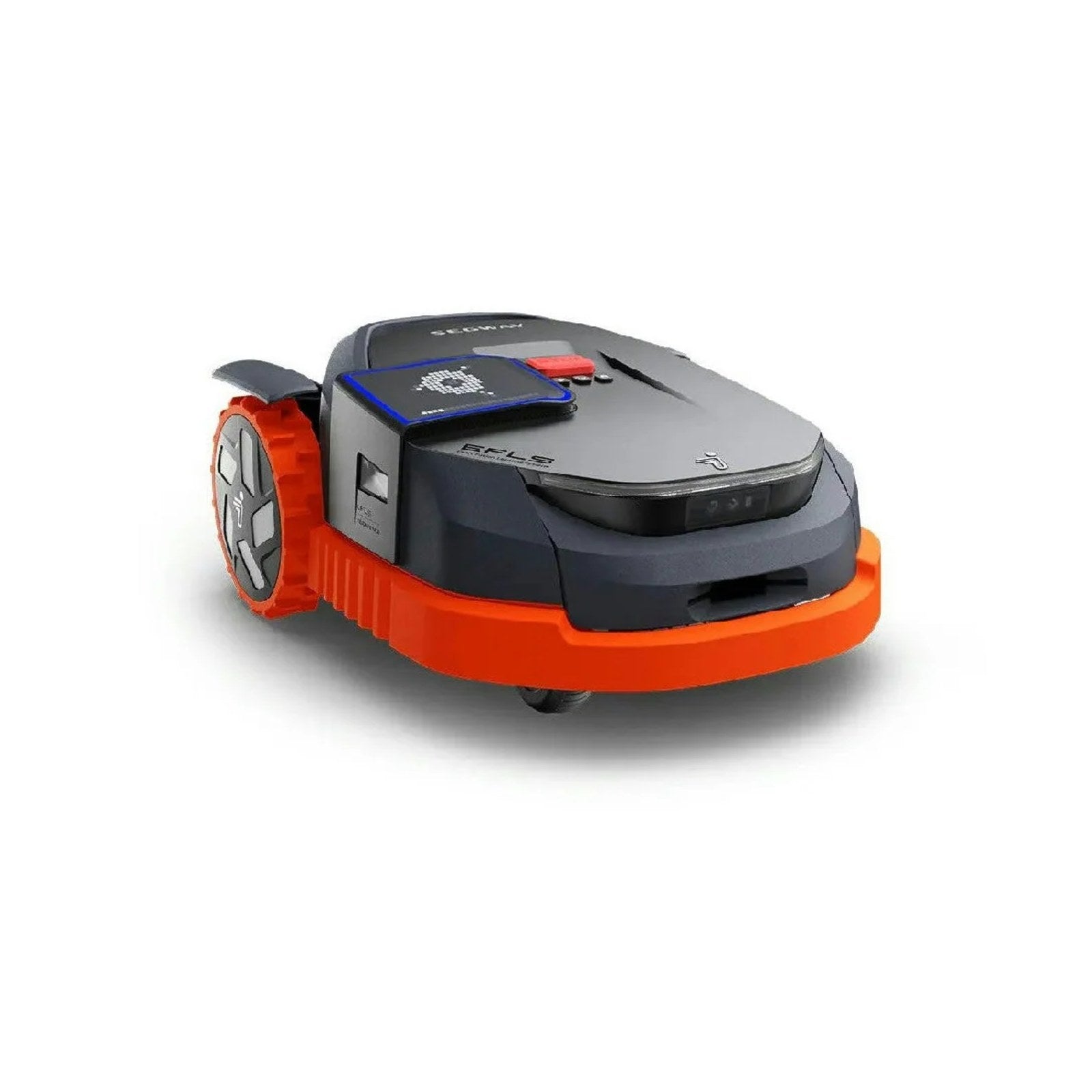

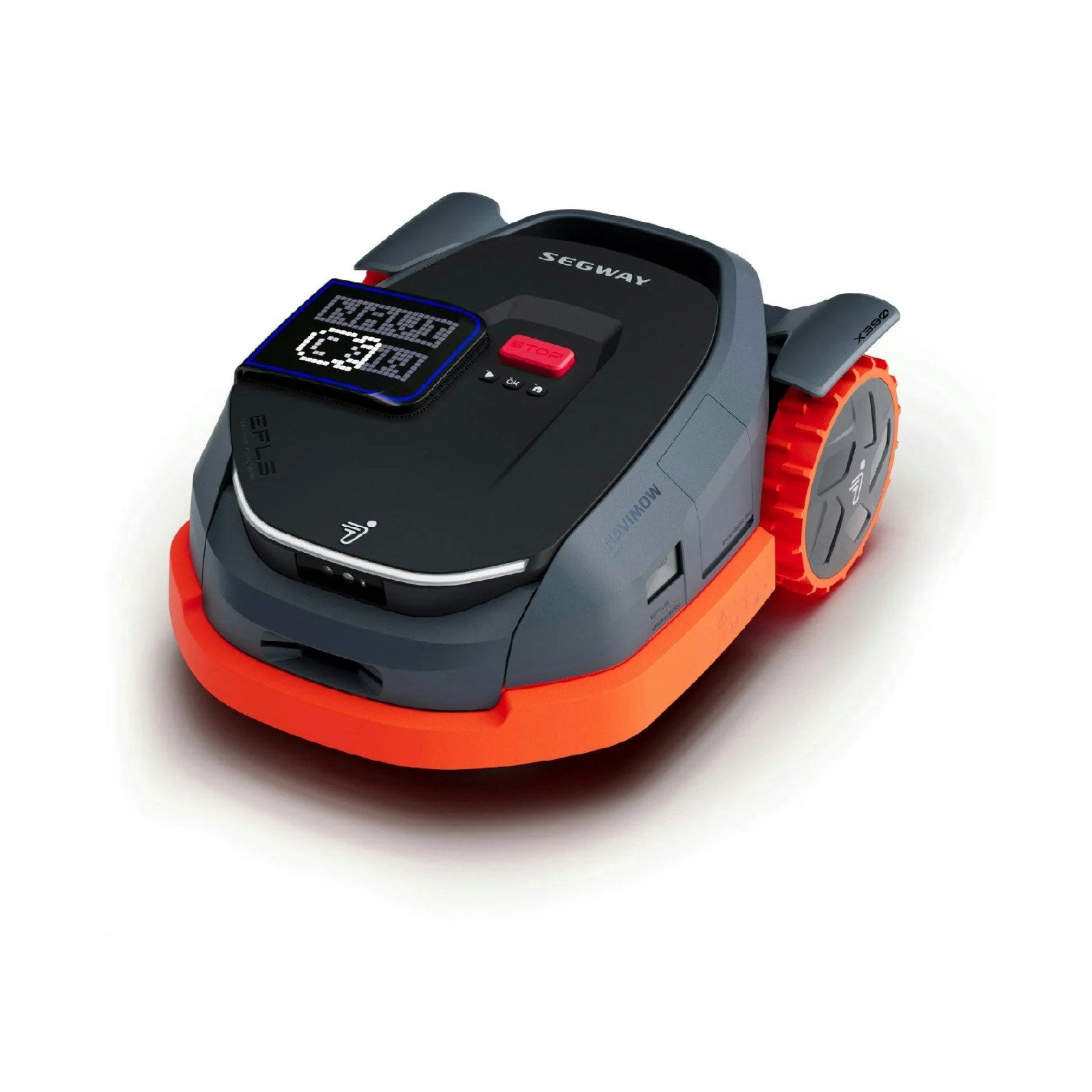

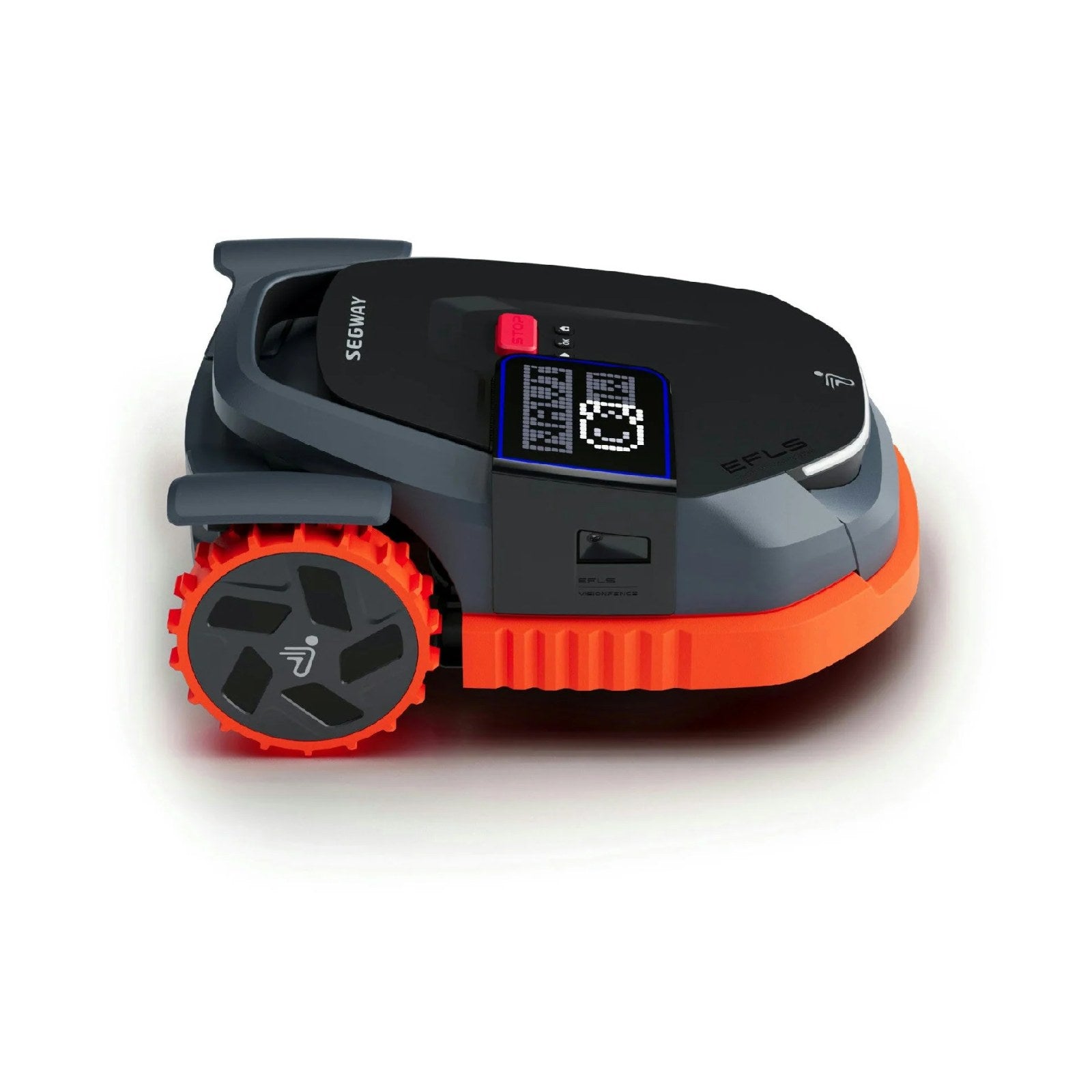

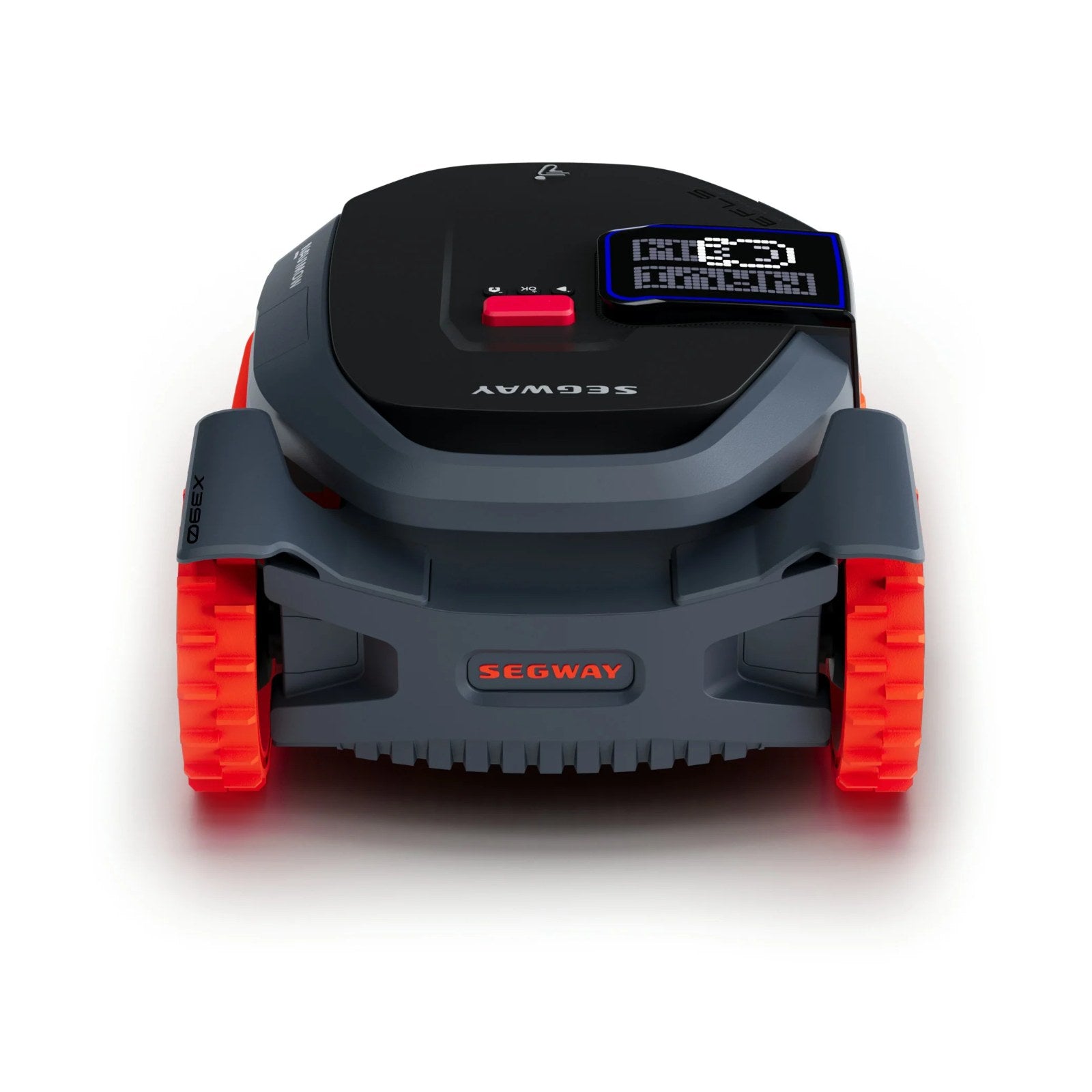

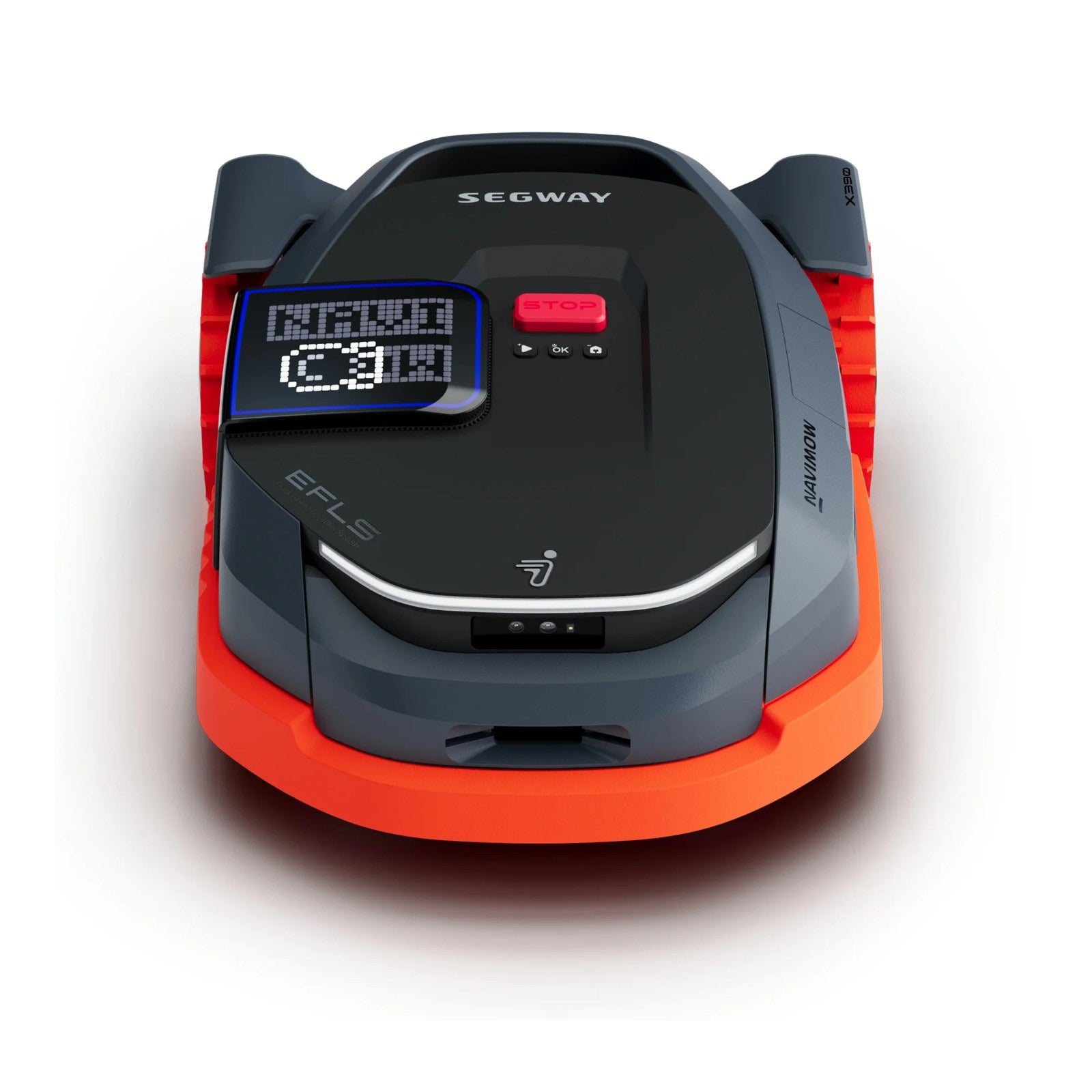

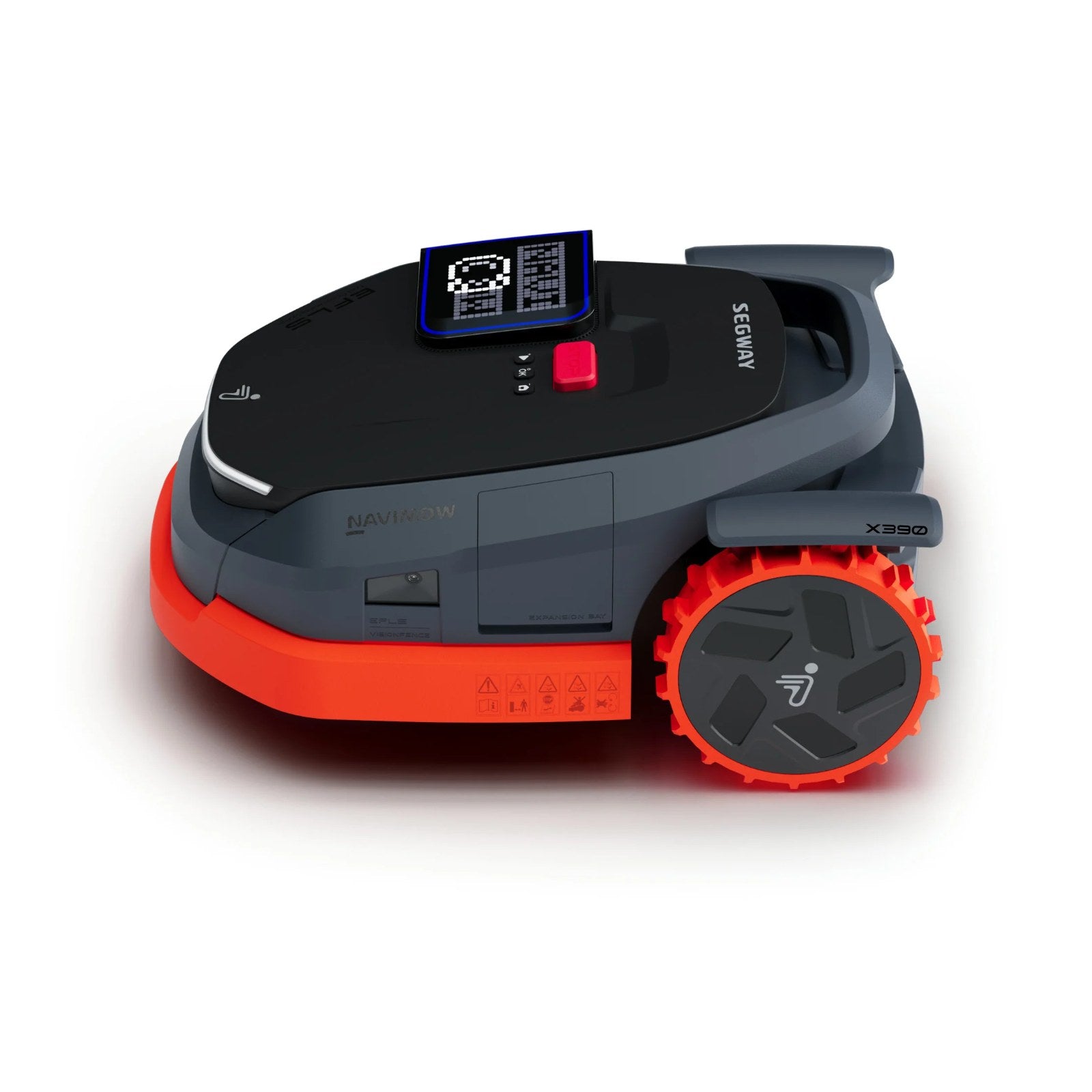

Navimow X390E Robotic Lawn Mower

Navimow X390E – High End Performance for Extremely Large Lawns

The Navimow X390E is designed for extremely large and demanding lawns where maximum capacity, speed and professional level precision are required. With EFLS™ 3.0 navigation, high mowing speed and advanced VisionFence™ obstacle detection, it delivers powerful, fully autonomous lawn care on a commercial scale surface.

1.    EFLS™ 3.0 Advanced Navigation with RGB + ToF
Equipped with EFLS™ 3.0 using a 300° RGB camera with ToF, combined with RTK and VSLAM, the X390E ensures stable, accurate navigation across very large and complex areas.

2.    Maximum Capacity for Extreme Lawn Sizes
Designed for lawns up to 10,000 m², the X390E offers outstanding daily coverage and runtime for large scale lawn maintenance.

3.    High Speed Mowing for Ultimate Efficiency
With a cutting speed of 1.0 m/s, the X390E covers large areas quickly while maintaining precise cutting results.

4.    Advanced VisionFence™ Obstacle Avoidance
300° VisionFence™ with RGB + ToF technology provides wide angle, depth aware obstacle detection for safe operation around people, pets and objects.

5.    Professional, Weather Adaptive Design
Featuring IP66 protection and self adaptive weather behaviour, the X390E is built for continuous, reliable outdoor operation.

Technical Data – Navimow X390E
•    Recommended Mowing Area: 10,000 m²
•    Locating System: EFLS™ 3.0 (300° RGB Camera + ToF + RTK + VSLAM)
•    Object Detection System: VisionFence™ (300° RGB Camera + ToF)
•    Driving Engine: 2 Rear Wheel Drive
•    Noise Level: 60 dB(A)
•    Protection Level: IP66
•    Weather Adaptive: Self Adaptive
•    Maximum Slope Ability: up to 50%
•    Antenna Installation Request: Optional
•    Auto Mapping: Assisted Mapping
•    Auto Recharge: Yes
•    Vertical Passing Ability: Not specified
•    Multi zone Management: Not specified
•    3D / GeoSketch: Not specified
•    Signal Enhancement Antenna: Not specified

Battery & Performance
•    Battery Capacity: 12.8 Ah
•    Charging Time: 100 minutes
•    Full Charge Mowing Time: 240 minutes
•    Mowing Area per Charge: Not specified
•    Continuous Mowing Area per Day (24 h): 5,500 m²
•    Cutting Speed: 1.0 m/s

Cutting System
•    Cutting Height:2–7 cm
•    Cutting Height Adjustment: Automatic
•    Cutting Width: 23.7 cm
