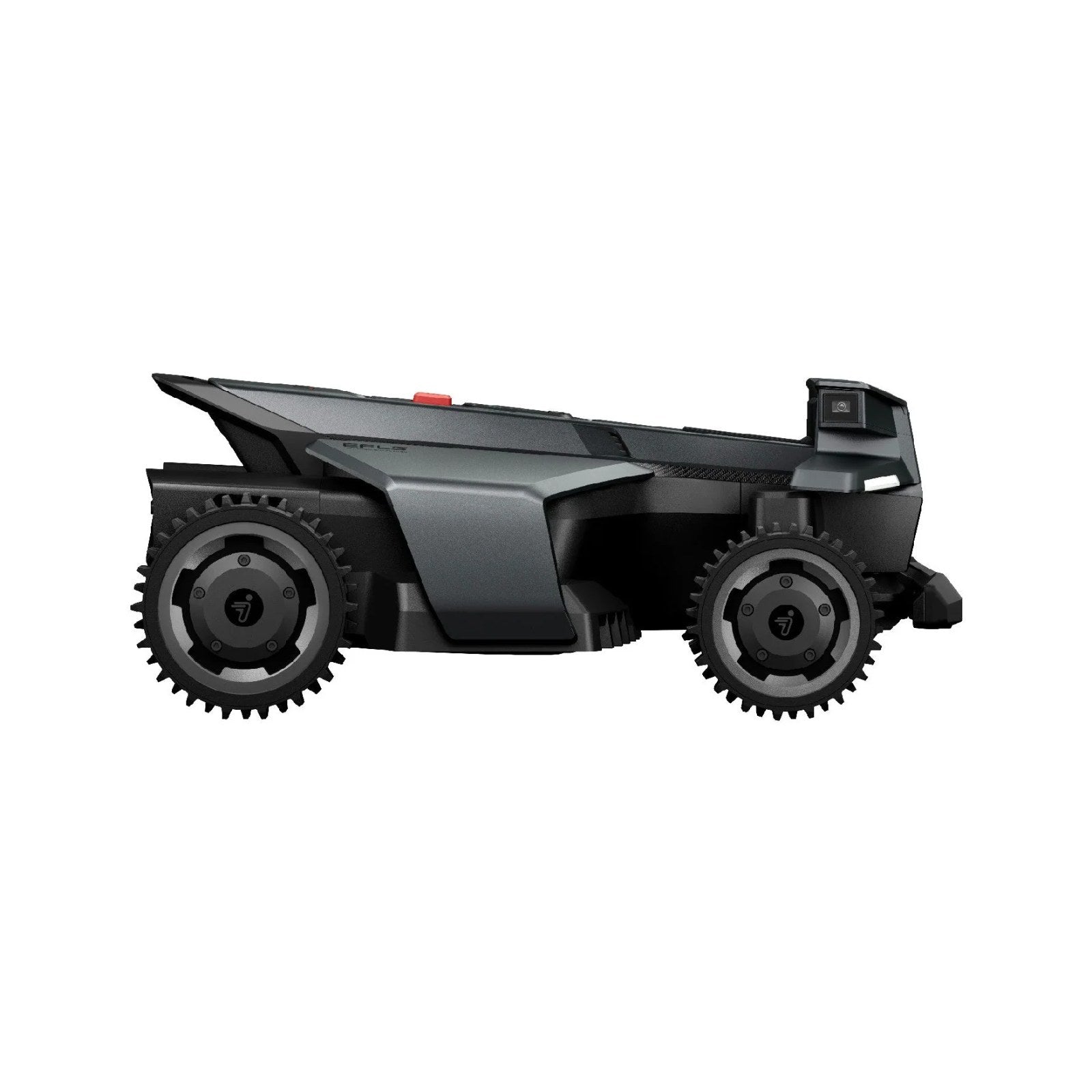

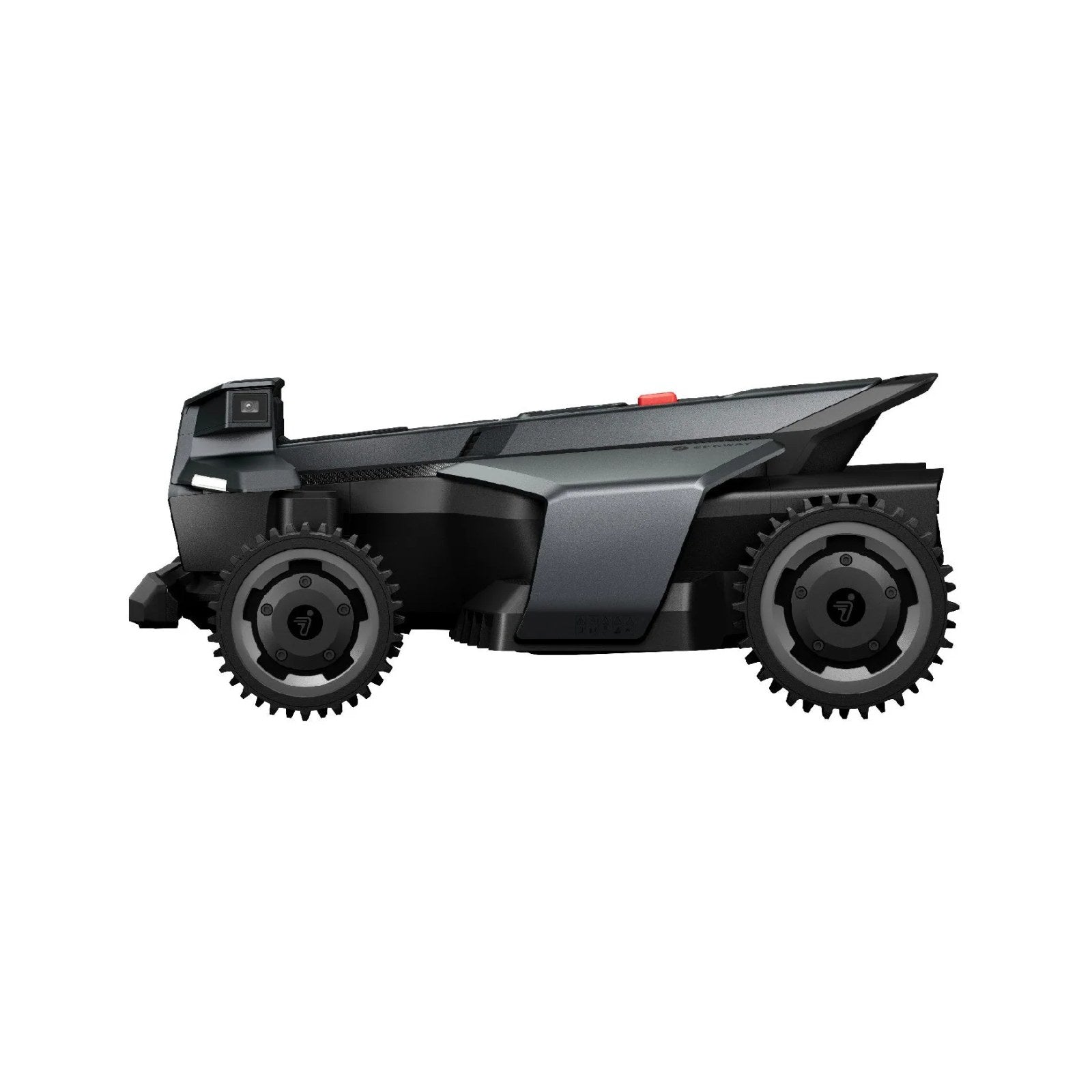

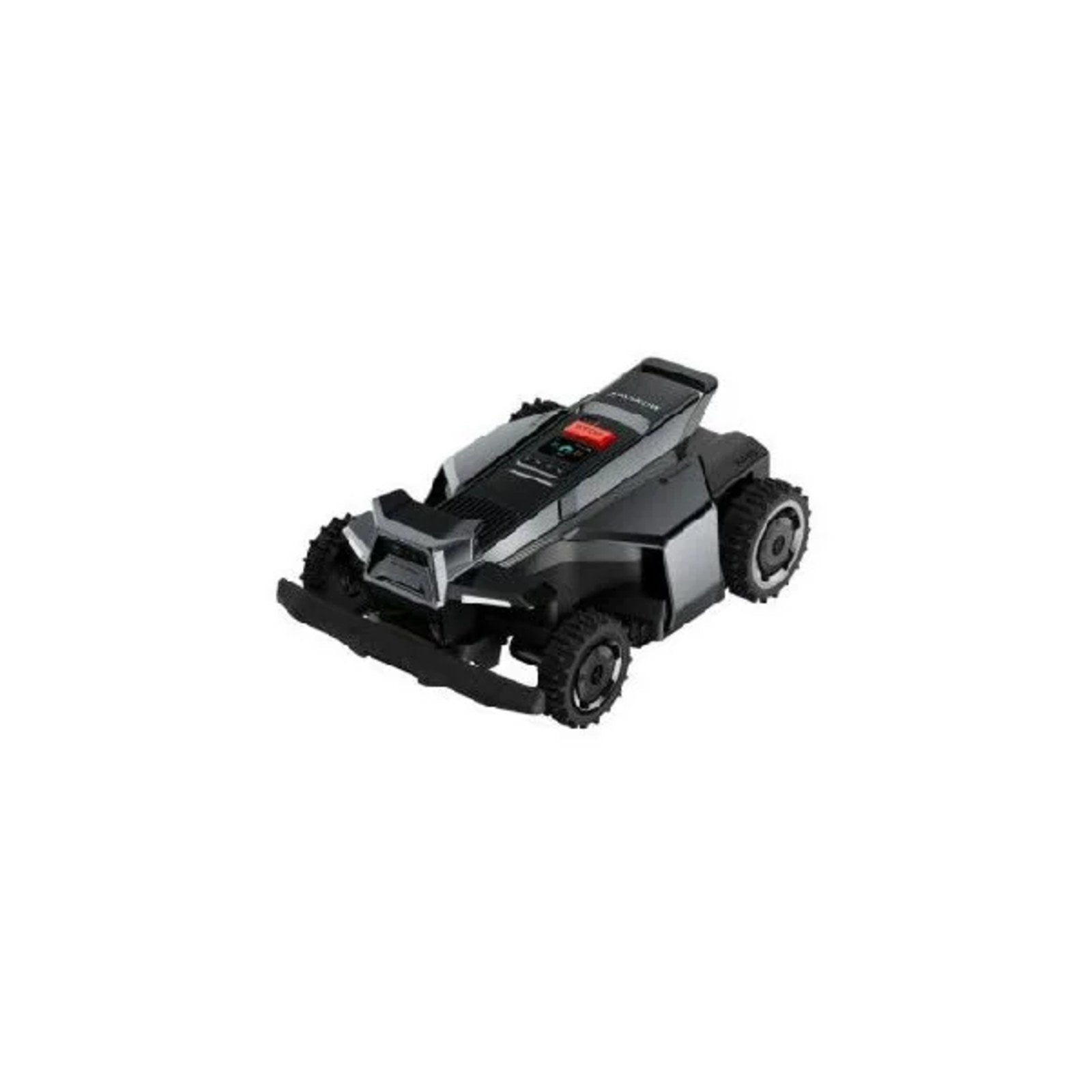

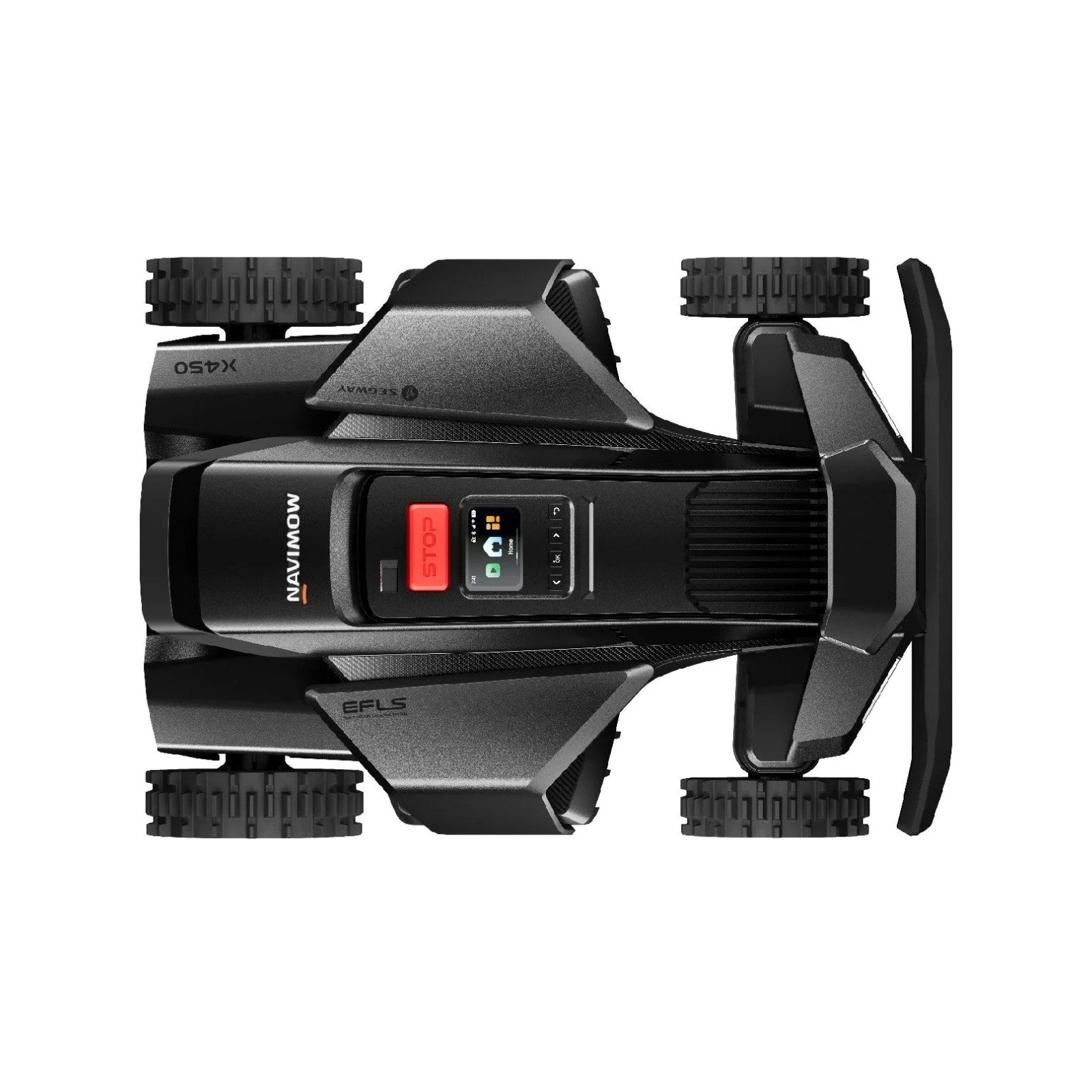

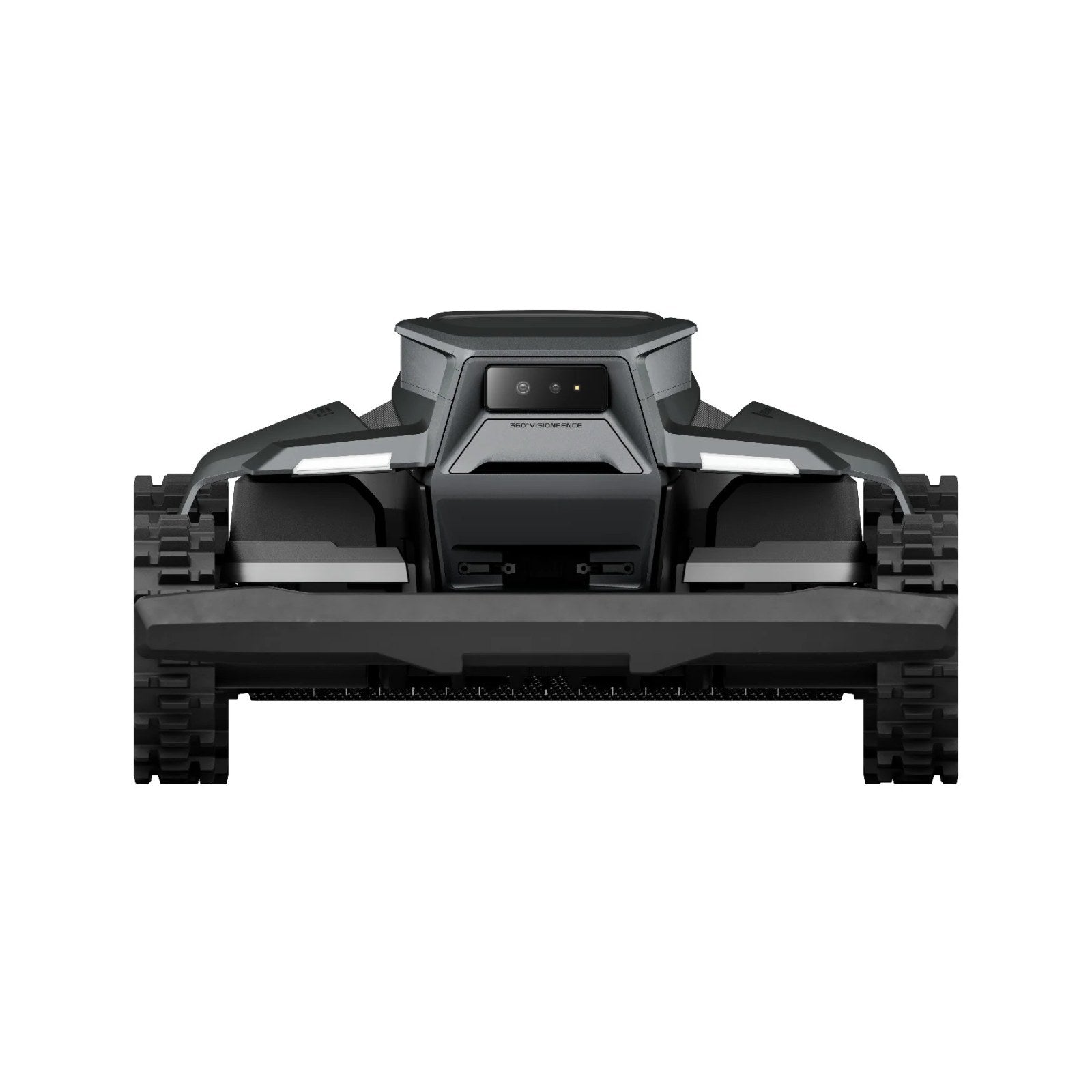

Navimow X430E Robotic Lawn Mower

Navimow X430E (Black) – Extreme Power and Precision for Very Large Lawns

The Navimow X430E (Black) is designed for very large and demanding lawns where maximum traction, high daily capacity and absolute navigation precision are required. Equipped with EFLS™ NRTK with 360° vision, powerful 4 wheel drive and advanced obstacle detection, it delivers professional grade, wire free mowing performance on the toughest terrain.

1.    Extreme All Terrain & Slope Performance
The advanced 4WD system with dual independent steering motors allows the X430E to handle slopes up to 84% (40°) and move confidently across uneven ground.

2.    EFLS™ NRTK with 360° Vision Navigation
By combining Network RTK, 360° RGB vision and VIO technology, the X430E achieves ultra stable and precise navigation without boundary wires.

3.    360° VisionFence™ Intelligent Obstacle Avoidance
VisionFence™ with RGB + ToF cameras provides full surround object detection, ensuring safe operation around people, pets and obstacles.

4.    Wire Free Auto Mapping with GeoSketch™
Automatic mapping and GeoSketch™ offer realistic garden visualisation and simple boundary editing directly in the app.

5.    Rugged, Weather Adaptive Professional Design
IP66 protection, a new rain sensor and weather adaptive operation ensure reliable, year round performance in demanding outdoor conditions.

Technical Data – Navimow X430E (Black)
•    Recommended Mowing Area: 3,000 m² / 1 acre
•    Locating System: EFLS™ NRTK (NRTK + 360° RGB Vision + VIO)
•    Object Detection System: VisionFence™ (360° RGB Camera + ToF)
•    Driving Engine: 4WD with dual independent steering motors
•    Noise Level: 68 dB(A)
•    Protection Level: IP66
•    Weather Adaptive: Weather Forecast + New Rain Sensor
•    Maximum Slope Ability: 84% (40°)
•    Antenna Installation Request: Optional
•    Auto Mapping: Yes (Auto Mapping)
•    Auto Recharge: Yes
•    Vertical Passing Ability: 7 cm (up to 15 cm on gentle slopes)
•    Multi zone Management: Yes
•    3D / GeoSketch: Yes
•    Signal Enhancement Antenna: Yes

Battery & Performance
•    Battery Capacity: 12.8 Ah
•    Charging Time: 90 minutes
•    Full Charge Mowing Time: 110 minutes
•    Mowing Area per Charge: 900 m²
•    Continuous Mowing Area per Day (24 h): 3,000 m² (approx. 11 hours)
•    Cutting Speed: Not specified

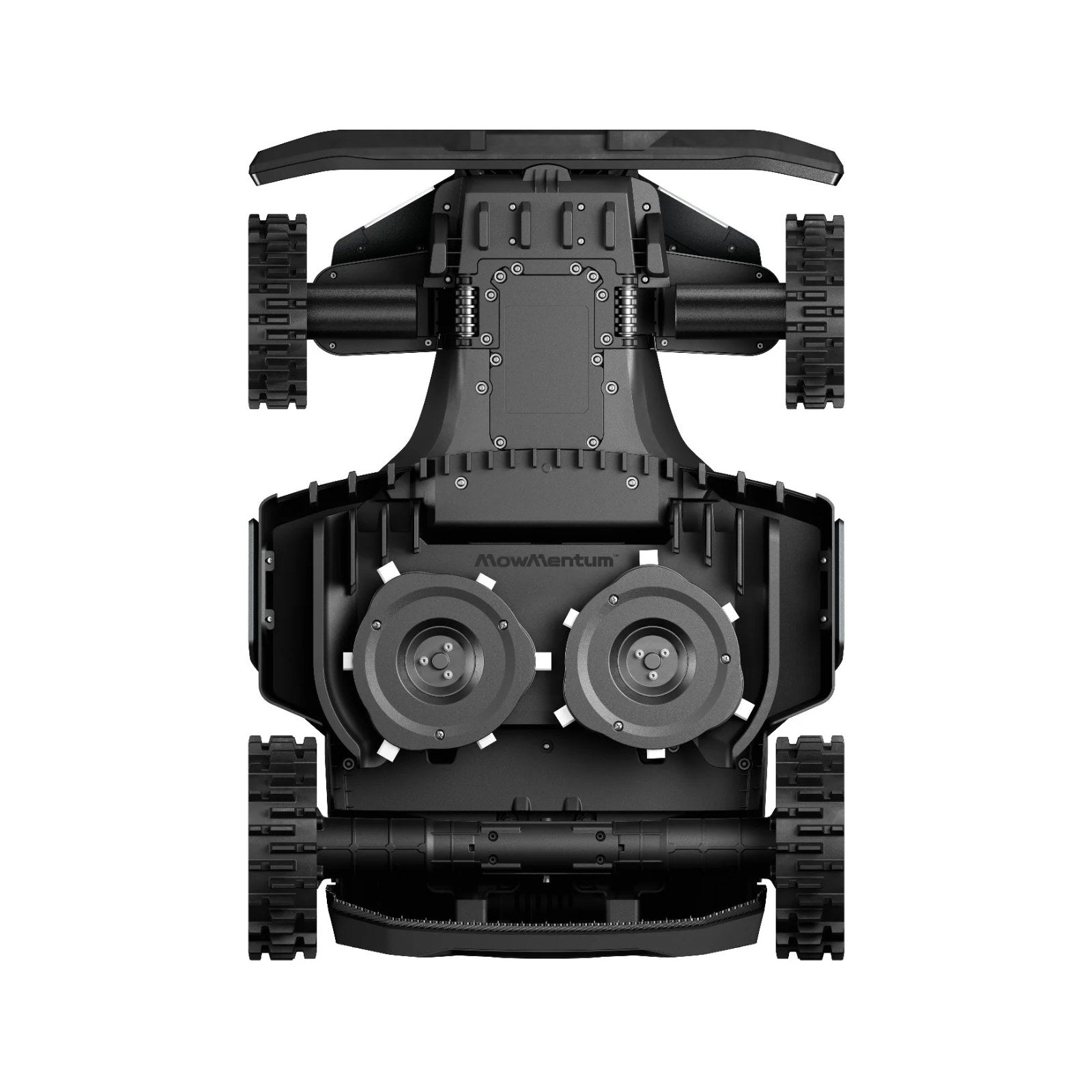

Cutting System
•    Cutting Height: 2–9.5 cm
•    Cutting Height Adjustment: Automatic
•    Cutting Width: 43 cm
